YHZS75 series mobile concrete batching plant

YHZS75 series mobile concrete batching plant

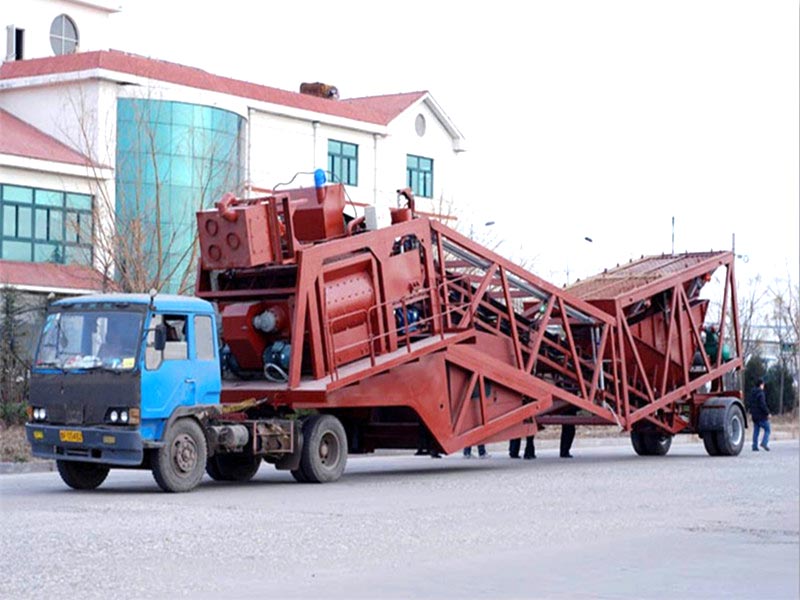

This series of mixing plant sets the metering hopper of batcher, belt conveyor and lifting belt conveyor in one, and adopts the semi-pulling structure with running system and standard coupling pin includes. It can be draggedy a tractor.

Email: sale@piconcretemachine.com


Product detail

YHZS75 series mobile concrete batching plant

Product introduction:

YHZS series mobile concrete batching plant from Zhengzhou Pioneer Machinery Co.,Ltd. Our company is a professional mixing equipment manufacturer in China with many years of production experience. There are many exporting countries,such as Eastern Europe, Southeast Asia, South America, Africa, Oceania and so on.

This series of mixing plant sets the metering hopper of batcher, belt conveyor and lifting belt conveyor in one, and adopts the semi-pulling structure with running system and standard coupling pin includes. It can be draggedy a tractor.

Product features:

1. Safety: Electrical circuits with greater safety. An electrical system equipped with safety switches.

2. Reliable: A professional embedded computer that can be operated manually, automatically, and automatically. The control system has a data backup function in case of sudden power outage, which can effectively prevent data damage and accurately record data.

3. Powerful: Automatically record storage management operations. And it is automatically maintained, so equipped with a warning system that can alert the operator.

Product Application:

The mobile mixing plant is suitable for the construction projects that need to be moved in highway, railway, bridge, port, hydropower and other projects. The mobile mixing station is convenient for transfer and is widely used.

Product detail:

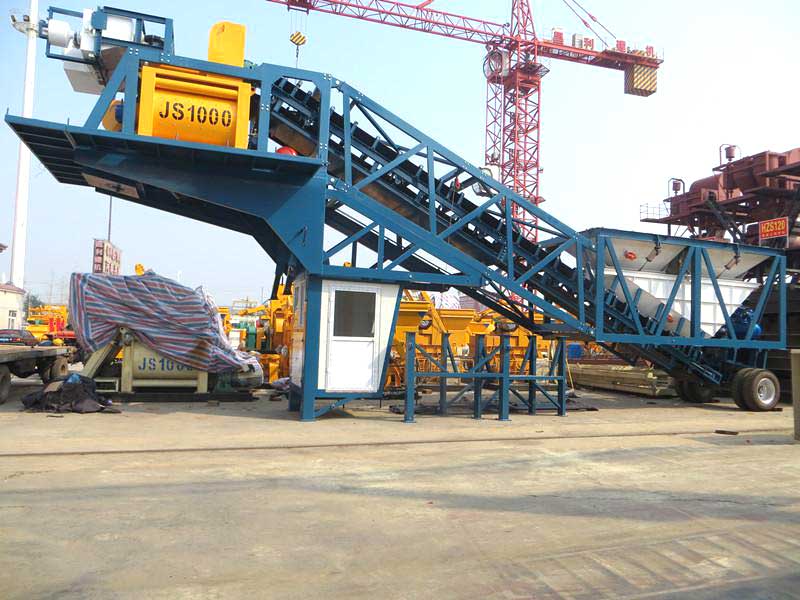

MIXING SYSTEM

Horizontal twin-shaft compulsory mixer has strong mixing ability, it can mix the materials evenly and effectivefy. It can mix concrete with different slumps and raw materials ratio. Its mixing blade and lining board are made of high chromium wear-resistant alloy.

External shaft end support and special shaft seal ensure the long service life of the mixer.Volume of concrete mixer is varying according to actual working capacity of concrete batching plant. The pictures are for reference only.

YHZS75 series mobile concrete batching plant
YHZS75 series mobile concrete batching plant

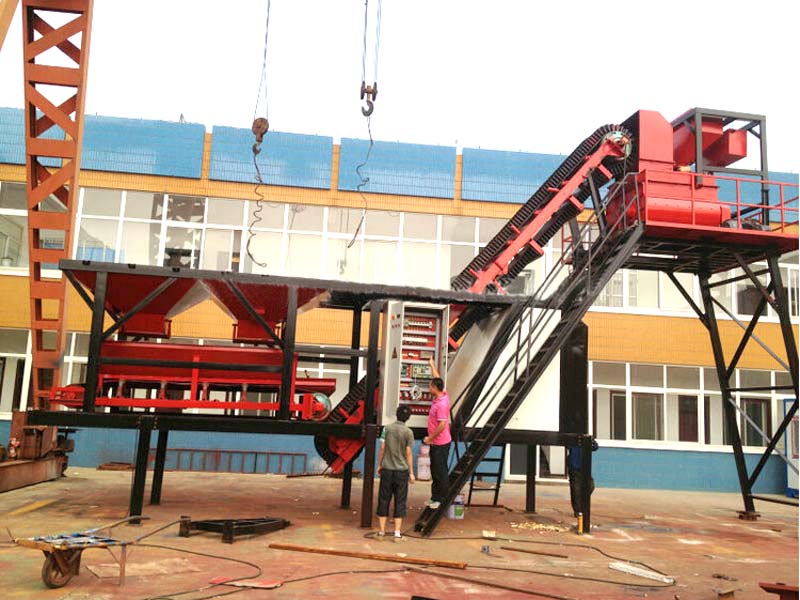

AGGREGATE BATCHING SYSTEM

The automatic aggregate batching system can be equipped with 2-6 aggregate storage bins according to customers' need. The steel-structure store-bunker adopt the structure of warehouse or half-warehouse and it can also be equipped with sand-moisture measuring instrument.

Domestic well-known brand or originally imported parts,microcomputer control, independent weighing(accumulative weighing) completely guarantee high-accuracy weighing.high efficiency and excellent function.

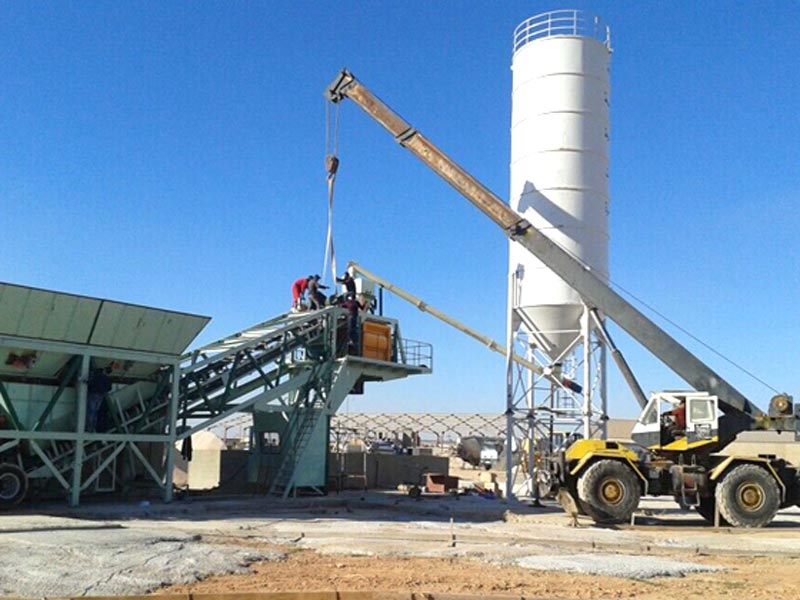

CEMENT SILO

We adopt very strong and thick cement silo which is split type, thus can largely save sea freight and it is easy to assembly at installation site abroad. There is level meter in the cement silo, indicating the cement level; the arc-breaking system guarantee the discharging fluently.

YHZS75 series mobile concrete batching plant
YHZS75 series mobile concrete batching plant

AUTOMATIC CONTROL SYSTEM

The controlling is independently completed by PLC with high reliability. It has various controlling modes like automatic mode,semi-automatic mode and manual mode. Adopted high-accuracy load indicator which is specialty designed for industrial control,

It has the advantages of high reliability, high precision^ high efficiency and anti-jamming. The operation is very easy,only one person can complete.

Product parameters:

Model YHZS25 YHZS40 YHZS50 YHZS75
Output capacity 25³/h 40³/h 60³/h 75³/h
Overall power 56.5kw 76kw 88kw 112kw
Discharge height 4200mm
Max. hauling speed 40km/h
Voltage/frequency AC380V/50Hz
Concrete mixer JS500 JS750 JS1000 JS1500
Motor power 56.5kw 76kw 88kw 112kw
Max. aggregate dia. 80mm 80mm 80mm 80mm
Aggregate batcher PLD800 PLD1200 PLD1600 PLD2400
Aggregate weighing precision ±2% ±2% ±2% ±2%
FOB Price USD49601 USD56686 USD63772 USD70858
