Walk behind power trowel machine
Product Description:

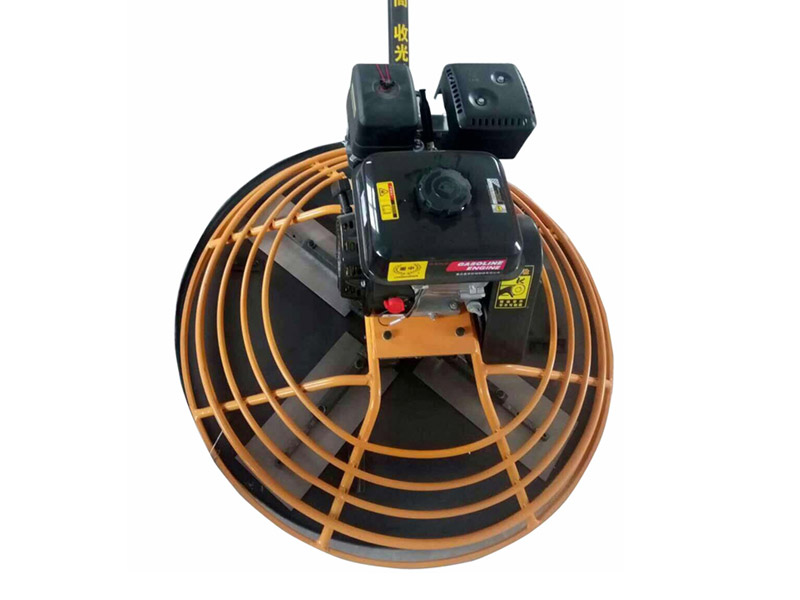

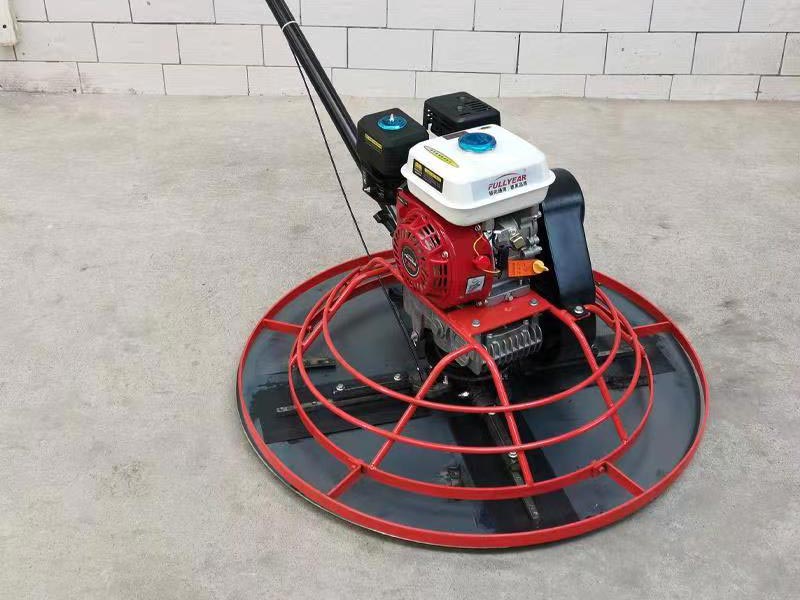

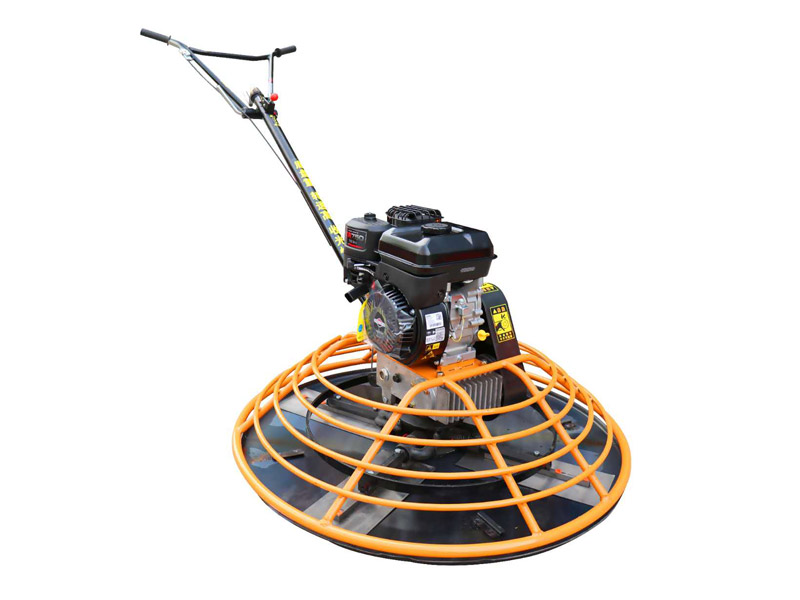

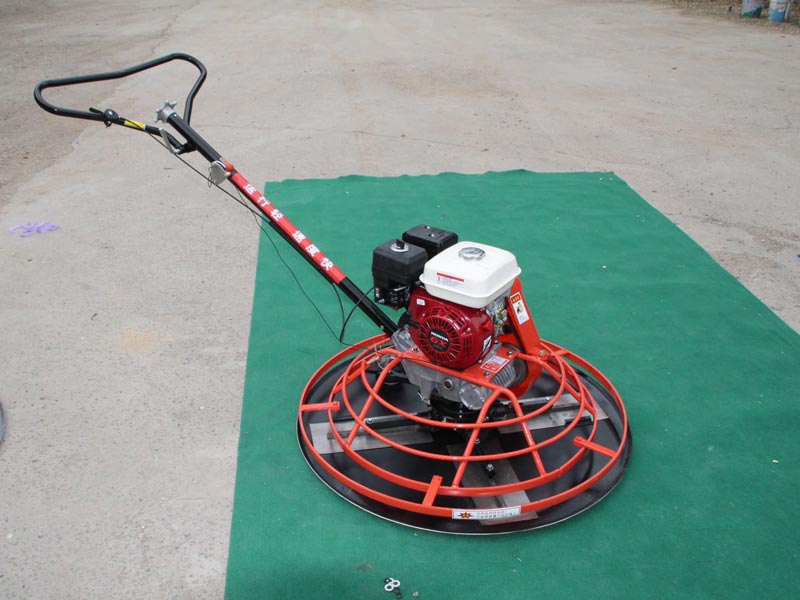

Walk behind Power Trowel Machine , its main structure is a gasoline engine driven spatula rotor, in the middle of the cross bottom surface is equipped with a spatula. The tilt direction of the spatula is consistent with the rotation direction of the rotor, and the triangular belt driven by the gasoline engine makes the spatula rotor rotate. When operating, first fire, hold the control handle, the two push forward together is to move forward, pull back together is to move back. It can do 100 ~ 300m2 per hour on average, and can improve the work efficiency more than 30 times compared with manual polishing.
Features:
* Aluminum gearbox,which ensures and increases the serve life of machine
* With import bearing and transmission system promise a stable and reliable operation
* With safty switch ensure the security or operator
* With low gravity ensure good compaction
* With 960mm work width increase work efficiency
* A strong power supplied by GX160 gasoline engine
Parameter:
| Model | PI100 | PI90 | PI80 |
| Engine | GX160 | GX160 | GX160 |
| Power(KW/hp) | 6.6/9.0 | 4.0/5.5 | 4.0/5.5 |
| Working Diameter (mm) | 100 | 90 | 80 |
| Rotatiom Speed(rpm) | 70-150 | 90-170 | 70-150 |
| Weight(kg) | 120 | 85 | 90 |
